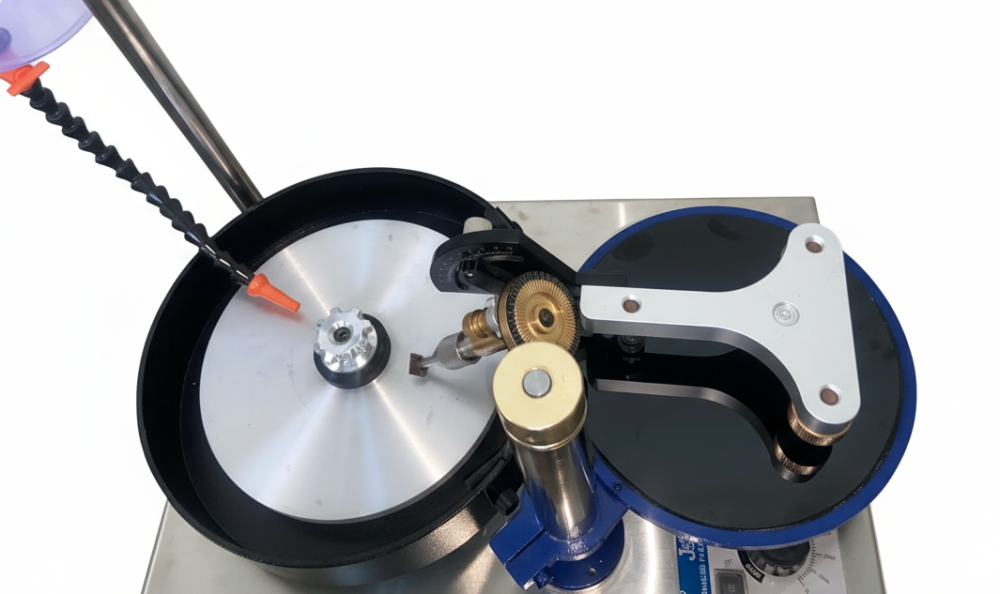

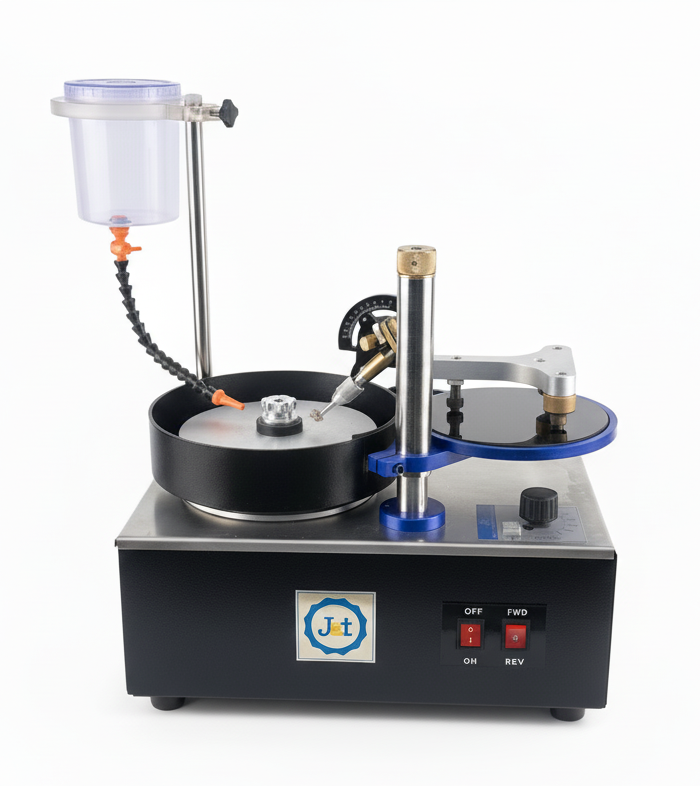

Handpiece Type Faceting Machine

Description

The Handpiece Type Faceting Machine is a precision gemstone cutting and polishing system. It combines the quickness and convenience of Sri Lankan/Asian-style handpiece faceting with the sturdy base design preferred in American machines. This fusion gives gem cutters the best of both worlds: fast adjustments, smooth control, and a stable platform for reliable, professional results.

Designed for Precision and Ease of Use

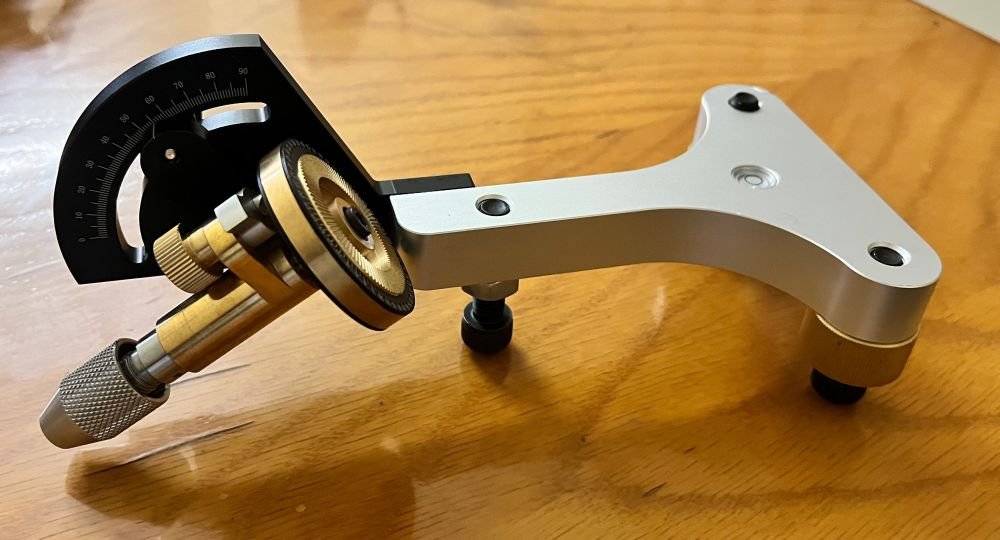

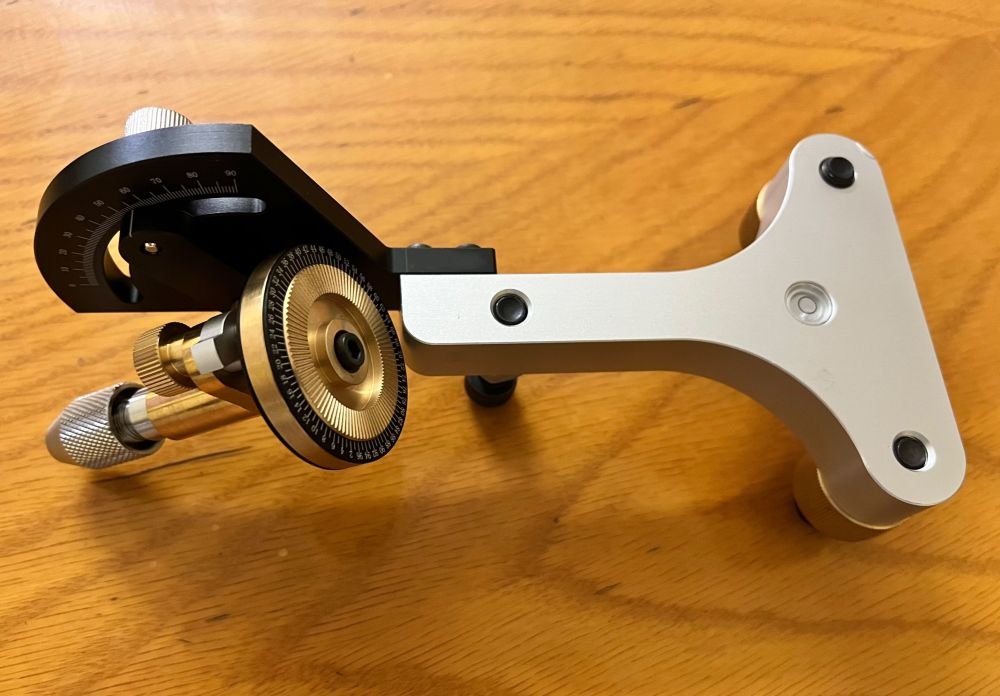

Handpiece Facetor System
Built from brass and aluminum for durability and accuracy

Enables fast angle adjustments, index selection, and cheater fine-tuning

Includes a bubble level indicator for perfect facet alignment

Advanced Mast & Swivel Base
Stainless steel mast with a jack screw mechanism for micro height adjustment

Glass swivel base plate, perfectly aligned parallel to the lap

Smooth positioning ensures repeatability and precision

Direct-drive Motor
250W brushless DC (BLDC) motor, variable speed up to 3000, Direct-drive system, no belts or pulleys

Provides silent, vibration-free performance with consistent torque

Ideal for both delicate polishing and heavy cutting

Dual Indexing gear with 96 and 72 divisions

Cheater adjustment for precise alignment of complex cuts

Complete Cutting Setup
Includes laps, keyed dop sticks, diamond powders, transfer jig, 45° adapter, and more, ready for faceting right out of the box.

Key Features
Handpiece-style facetor (Sri Lankan/Asian design) with smooth angle, index, and cheater adjustments

Bubble level indicator for cutting accuracy

Stainless steel mast with jack screw for micro height control

Glass swivel base plate, aligned parallel to the lap surface

250W direct-drive BLDC motor, variable speed 0–3000 RPM

Dual index gears: 96 & 72 teeth

8 mm aluminum base plate for stability and vibration resistance

Keyed dop sticks for repeatable alignment

Drip water system with adjustable flow

Magnetic LED lamp for clear visibility

45° adapter for quick, accurate table polishing

Rear drainage outlet for clean operation

Accessories Included
1 × Handpiece Type Facetor

2 × 200 mm (8″) diamond grinding laps

1 × 200 mm (8″) zinc polishing lap

1 × Aluminum master lap

1 × Steel dop stick set (various sizes & shapes)

1 × Dop transfer jig

1 × 45° table adapter

4 × Diamond powder packs (25 ct each)

1 × Drainage hose

1 × Magnetic LED lamp

1 × Superglue tube for doping

Toolkit and power cable

Specifications
Dimensions (L × W × H): 460 × 360 × 400 mm

Motor Power: 250 W BLDC, variable 0–3000 RPM

Lap Diameter: Up to 200 mm (8”)

Power Supply: 220V AC or 110V AC

Net Weight: ~18 kg

Warranty & Support
1-year manufacturer warranty (excludes consumables and physical damage)

Installation and operation support included
